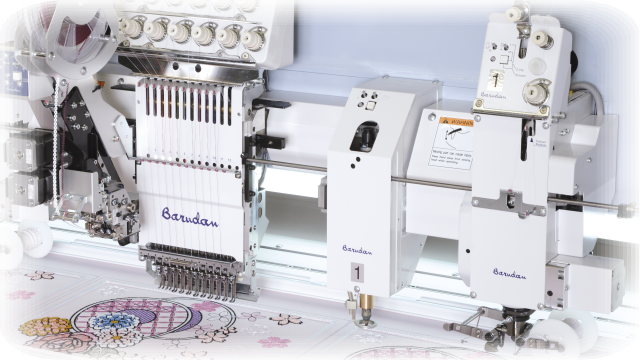

PHOTO HLCLZ11 Head
USB Memory
Number of colors (embroidery) |
11 | ||
---|---|---|---|
Number of colors (chenille) |
6 | ||
Stitch Length (mm) |
0.1~12.7 | ||
Speed(rpm) (Standard) |
200~1000 | ||
Speed(rpm) (chenille) |
200~650 | ||
Speed(rpm) (Lock Stitch) |
200~900 | ||
Power Supply (V) |
1φ 200~240 3φ 200~415 |
||
Power Consumption (kW) |
1.5 |
Number of colors (embroidery) |
11 | ||
---|---|---|---|
Number of colors (chenille) |
6 | ||
Stitch Length (mm) |
0.1~12.7 | ||
Speed(rpm) (Standard) |
200~1000 | ||
Speed(rpm) (chenille) |
200~650 | ||
Speed(rpm) (Lock Stitch) |
200~900 | ||
Power Supply (V) |
1φ 200~240 3φ 200~415 |
||
Power Consumption (kW) |
1.5 |
Number of colors (embroidery) |
11 | ||
---|---|---|---|
Number of colors (chenille) |
6 | ||
Stitch Length (mm) |
0.1~12.7 | ||
Speed(rpm) (Standard) |
200~1000 | ||
Speed(rpm) (chenille) |
200~650 | ||
Speed(rpm) (Lock Stitch) |
200~900 | ||
Power Supply (V) |
1φ 200~240 3φ 200~415 |
||
Power Consumption (kW) |
1.5 |
Number of colors (embroidery) |
11 | ||
---|---|---|---|
Number of colors (chenille) |
6 | ||
Stitch Length (mm) |
0.1~12.7 | ||
Speed(rpm) (Standard) |
200~1000 | ||
Speed(rpm) (chenille) |
200~650 | ||
Speed(rpm) (Lock Stitch) |
200~900 | ||
Power Supply (V) |
1φ 200~240 3φ 200~415 |
||
Power Consumption (kW) |
1.5 |
Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
---|---|---|---|
800×850 ⁄ 850 | 850 | L | 4720 |
W | 2230 | ||
H | 1670 | ||
800×880 ⁄ 880 | 880 | L | 4780 |
W | 2230 | ||
H | 1670 |
Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
---|---|---|---|
800×850 ⁄ 850 | 850 | L | 5570 |
W | 2230 | ||
H | 1670 | ||
800×880 ⁄ 880 | 880 | L | 5660 |
W | 2230 | ||
H | 1670 |
Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
---|---|---|---|
800×850 ⁄ 850 | 850 | L | 7270 |
W | 2230 | ||
H | 1670 | ||
800×880 ⁄ 880 | 880 | L | 7420 |
W | 2230 | ||
H | 1670 |
Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
---|---|---|---|
800×850 ⁄ 850 | 850 | L | 8970 |
W | 2230 | ||
H | 1670 | ||
800×880 ⁄ 880 | 880 | L | 9230 |
W | 2230 | ||
H | 1670 |

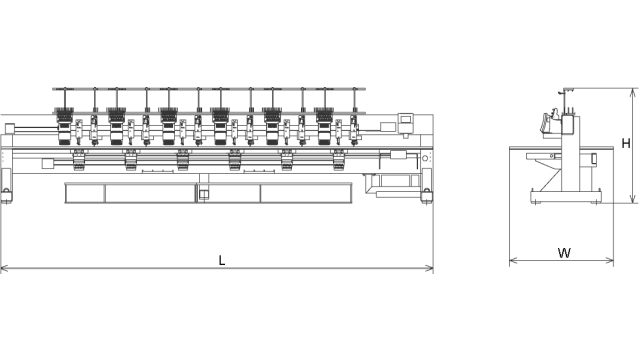

MODEL BEXS-HLCLZ1106
The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Machines and specifications are subject to change at any time without prior notice.
