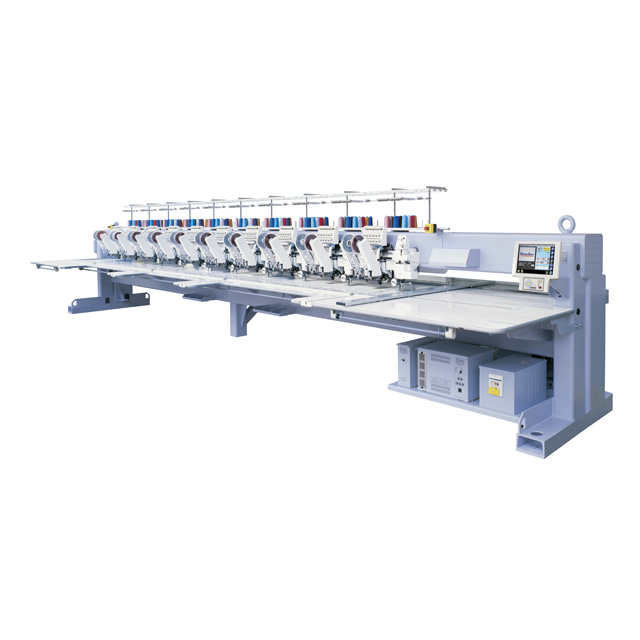

High speed multi head embroidery machine
High speed multi head embroidery machine
The world's fastest Lock Stitch Zig-Zag embroidery machine with speed 900rpm.
KS Automat
USB Memory
| Embroidery Area (mm) |
750×560 ⁄ 560 | 1000×560 ⁄ 560 | |
|---|---|---|---|
| Number of Needles | 9 | ||
| Speed(rpm) (Lock Stitch) |
200~900 | ||
| Speed(rpm) (Standard) |
200~1000 | ||
| Power Supply (V) |
3φ 200~415 |
||
| Power Consumption (kW) |
2.5 | ||
| Embroidery Area (mm) |
750×560 ⁄ 560 | 1000×560 ⁄ 560 | |
|---|---|---|---|
| Number of Needles | 9 | ||
| Speed(rpm) (Lock Stitch) |
200~900 | ||
| Speed(rpm) (Standard) |
200~1000 | ||
| Power Supply (V) |
3φ 200~415 |
||
| Power Consumption (kW) |
2.8 | ||
| Embroidery Area (mm) |
750×640 ⁄ 640 | 1000×640 ⁄ 640 | |
|---|---|---|---|
| Number of Needles | 12 | ||
| Speed(rpm) (Lock Stitch) |
200~900 | ||
| Speed(rpm) (Standard) |
200~1000 | ||
| Power Supply (V) |
3φ 200~415 |
||
| Power Consumption (kW) |
2.5 | ||
| Embroidery Area (mm) |
750×640 ⁄ 640 | 1000×640 ⁄ 640 | |
|---|---|---|---|
| Number of Needles | 12 | ||
| Speed(rpm) (Lock Stitch) |
200~900 | ||
| Speed(rpm) (Standard) |
200~1000 | ||
| Power Supply (V) |
3φ 200~415 |
||
| Power Consumption (kW) |
2.5 | ||
| Embroidery Area (mm) |
750×640 ⁄ 640 | 1000×640 ⁄ 640 | |
|---|---|---|---|
| Number of Needles | 12 | ||
| Speed(rpm) (Lock Stitch) |
200~900 | ||
| Speed(rpm) (Standard) |
200~1000 | ||
| Power Supply (V) |
3φ 200~415 |
||
| Power Consumption (kW) |
2.5 | ||
| Embroidery Area (mm) |
750×640 ⁄ 640 | 1000×640 ⁄ 640 | |
|---|---|---|---|
| Number of Needles | 12 | ||
| Speed(rpm) (Lock Stitch) |
200~900 | ||
| Speed(rpm) (Standard) |
200~1000 | ||
| Power Supply (V) |
3φ 200~415 |
||
| Power Consumption (kW) |
2.5 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 750×560 ⁄ 560 | 560 | L | 8820 |
| W | 2130 | ||
| H | 1670 | ||
| 1000× 560 ⁄ 560 | 560 | L | 8820 |
| W | 2630 | ||
| H | 1670 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 750× 560 ⁄ 560 | 560 | L | 10800 |
| W | 2130 | ||
| H | 1770 | ||
| 1000× 560 ⁄ 560 | 560 | L | 10800 |
| W | 2630 | ||
| H | 1770 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 750× 640 ⁄ 640 | 640 | L | 6130 |
| W | 2130 | ||
| H | 1670 | ||
| 1000× 640 ⁄ 640 | 640 | L | 6130 |
| W | 2630 | ||
| H | 1670 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 750×640 ⁄ 640 | 640 | L | 7410 |
| W | 2130 | ||
| H | 1670 | ||
| 1000× 640 ⁄ 640 | 640 | L | 7410 |
| W | 2630 | ||
| H | 1670 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 750×640 ⁄ 640 | 640 | L | 8690 |
| W | 2130 | ||
| H | 1670 | ||
| 1000× 640 ⁄ 640 | 640 | L | 8690 |
| W | 2630 | ||
| H | 1670 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 750× 640 ⁄ 640 | 640 | L | 10270 |
| W | 2130 | ||
| H | 1920 | ||
| 1000× 640 ⁄ 640 | 640 | L | 10270 |
| W | 2630 | ||
| H | 1920 | ||

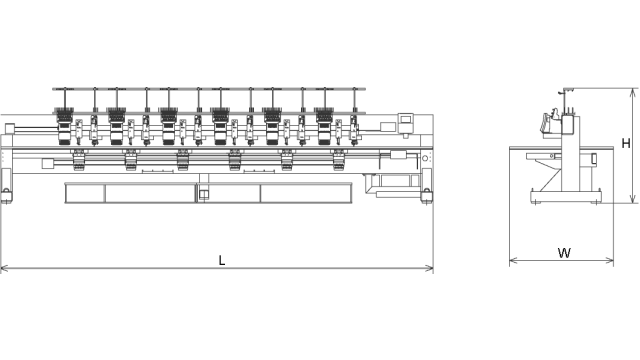

MODEL BEKS-HLZ1210
The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Machines and specifications are subject to change at any time without prior notice.
