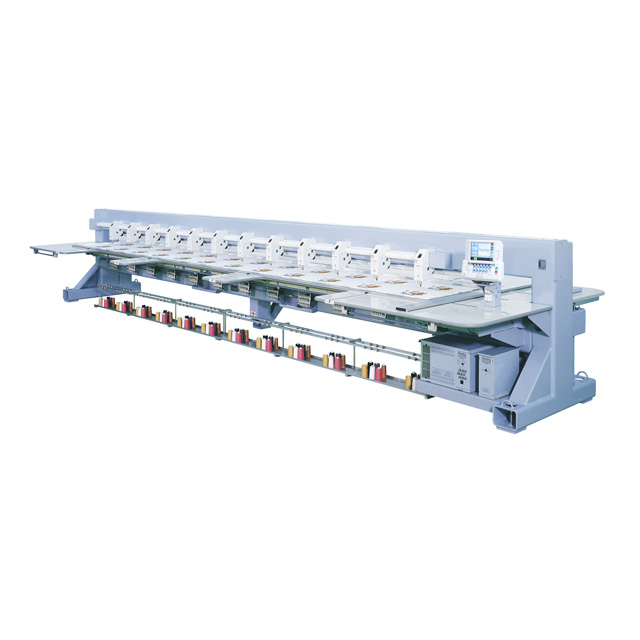

High speed multi head embroidery machine
High speed multi head embroidery machine
Top speed 650RPM
Automatic Color Change in 6 colors for chenille.
Automatic Trimming System.
Automatic Chenille Needle Height Control in 10 levels.
Automatic Pressure Foot Lift Control for easy frame change.
USB Memory
| Embroidery Area (mm) |
450×800 ⁄ 800 | ||
|---|---|---|---|
| Number of colors for chenille | 6 | ||
| Speed (rpm) |
200~650 | ||
| Power Supply (V) |
1φ 100~240 3φ 200~415 |
||
| Power Consumption (kW) |
0.8 | ||
| Embroidery Area (mm) |
800×500 ⁄ 500 | ||
|---|---|---|---|
| Number of colors for chenille | 6 | ||
| Speed (rpm) |
200~650 | ||
| Power Supply (V) |
1φ 100~240 3φ 200~415 |
||
| Power Consumption (kW) |
1.3 | ||
| Embroidery Area (mm) |
800×500 ⁄ 500 | ||
|---|---|---|---|
| Number of colors for chenille | 6 | ||
| Speed (rpm) |
200~650 | ||
| Power Supply (V) |
1φ 100~240 3φ 200~415 |
||
| Power Consumption (kW) |
1.3 | ||
| Embroidery Area (mm) |
800×500 ⁄ 500 | ||
|---|---|---|---|
| Number of colors for chenille | 6 | ||
| Speed (rpm) |
200~650 | ||
| Power Supply (V) |
3φ 200~415 |
||
| Power Consumption (kW) |
2.5 | ||
| Embroidery Area (mm) |
800×500 ⁄ 500 | ||
|---|---|---|---|
| Number of colors for chenille | 6 | ||
| Speed (rpm) |
200~650 | ||
| Power Supply (V) |
3φ 200~415 |
||
| Power Consumption (kW) |
2.5 | ||
| Embroidery Area (mm) |
800×450 ⁄ 450 | ||
|---|---|---|---|
| Number of colors for chenille | 6 | ||
| Speed (rpm) |
200~650 | ||
| Power Supply (V) |
3φ 200~415 |
||
| Power Consumption (kW) |
2.8 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 450×800 ⁄ 800 | 800 | L | 2055 |
| W | 1480 | ||
| H | 1410 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 800×500 ⁄ 500 | 500 | L | 3555 |
| W | 2180 | ||
| H | 1410 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 800×500 ⁄ 500 | 500 | L | 4555 |
| W | 2180 | ||
| H | 1410 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 800×500 ⁄ 500 | 500 | L | 6555 |
| W | 2180 | ||
| H | 1410 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 800×500 ⁄ 500 | 500 | L | 7555 |
| W | 2180 | ||
| H | 1410 | ||
| Embroidery Area (mm) |
Needle Distance (mm) |
Dimensions (mm) |
|
|---|---|---|---|
| 800×450 ⁄ 450 | 450 | L | 8255 |
| W | 2180 | ||
| H | 1410 | ||

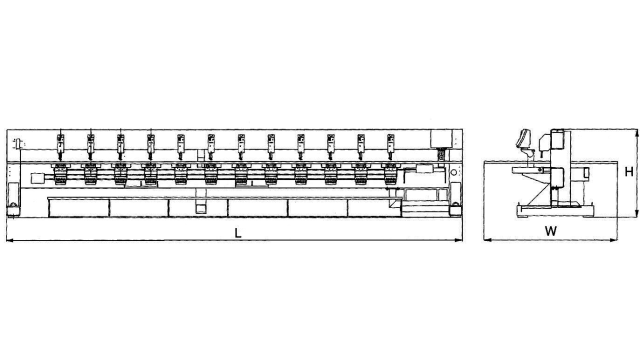

MODEL BEXS-CL12
The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Other embroidery areas are available upon consultation.
Machines and specifications are subject to change at any time without prior notice.
