Big Field Machine

MODEL BEKS-Y902

Features

Biggest Embroidery Field Size in the World.High Speed. High Production.

Standard

KS Automat

USB Memory

Machine Specifications

BEKS-Y901

Embroidery Area (mm)	1500× 1000 ⁄ 1000
Number of Needles	9
Stitch Length (mm)	0.1~12.7
Speed (rpm)	200~1000
Power Supply (V)	1φ 200~240 3φ 200~415
Power Consumption (kW)	0.34

BEKS-Y902

Embroidery Area (mm)	1500 × 500 ⁄ 500	1500 × 500 ⁄ 1000	1500 × 1000 ⁄ 1000
Number of Needles	9
Stitch Length (mm)	0.1~12.7
Speed (rpm)	200~1000
Power Supply (V)	1φ 200~240 3φ 200~415
Power Consumption (kW)	0.6

BEKS-Y904

Embroidery Area (mm)	1500 × 500 ⁄ 500	1500 × 500 ⁄ 1000	1500 × 1000 ⁄ 1000
Number of Needles	9
Stitch Length (mm)	0.1~12.7
Speed (rpm)	200~1000
Power Supply (V)	1φ 200~240 3φ 200~415
Power Consumption (kW)	0.6

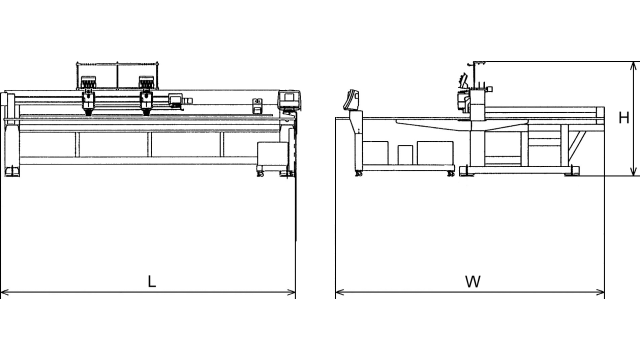

Machine Main Dimensions

BEKS-Y901

Embroidery Area (mm)	Needle Distance (mm)	Continuous Design (mm)	Dimensions (mm)
1500× 1000 ⁄ 1000	1000	1500 × 1000	L	3050
			W	3500
			H	1670

BEKS-Y902

Embroidery Area (mm)	Needle Distance (mm)	Continuous Design (mm)	Dimensions (mm)
1500× 500 ⁄ 500	500	1500 × 1000	L	2550
			W	3500
			H	1670
1500× 500 ⁄ 1000	500	1500 × 1000	L	3550
			W	3500
			H	1670
1500× 1000 ⁄ 1000	1000	1500 × 2000	L	4050
			W	3500
			H	1670

BEKS-Y904

Embroidery Area (mm)	Needle Distance (mm)	Continuous Design (mm)	Dimensions (mm)
1500× 500 ⁄ 500	500	1500 × 2000	L	3550
			W	3500
			H	1670
1500× 500 ⁄ 1000	500	1500 × 2000	L	4550
			W	3500
			H	1670
1500× 1000 ⁄ 1000	1000	1500 × 4000	L	6050
			W	3500
			H	1670

MODEL BEXS-HLCLZ1106

MODEL BEKS-Y902

The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Other embroidery areas are available upon consultation.
Machines and specifications are subject to change at any time without prior notice.
