High speed multi head embroidery machine
High speed multi head embroidery machine
USB Memory
| Embroidery Area (mm) |
Number of Needles | Stitch Length (mm) |
Speed (rpm) |
Power Supply (V) |
Power Consumption (kW) |
|---|---|---|---|---|---|
| 600×350 ⁄ 350 | 9 | 0.1~12.7 | 200~1000 | 1φ 100~240 3φ 200~415 |
1.2 |
| Needle Distance (mm) |
Continuous Design (mm) |

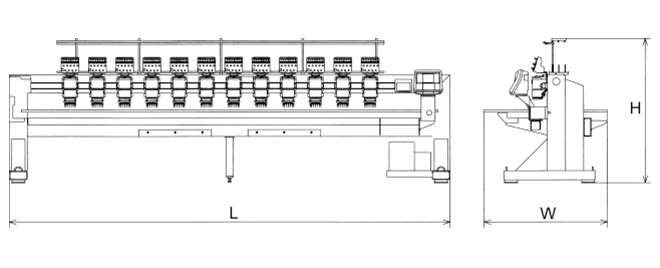

Dimensions(mm) | ||
|---|---|---|---|---|
| L | W | H | ||
| 350 | 600×4200 | 5400 | 1660 | 1565 |
The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Other embroidery areas are available upon consultation.
The sewing speed range is indicated above. Actual sewing speed should be adjusted for your embroidery application, i.e., stitch length, fabric used, etc.
