Name Drop
Separates names in a multiple name design for view and sewing purposes
Frame Centering Function
Frame Limit Function
Able to restrict machine operation when a design does not fit to the frame or when there is a risk of a needle bar hitting the frame.
Shortcuts - customize most-used icons to save time LAN Connector Standard, 1 COM, 2 USB ports
10 million stitch capacity, 100 memory locations.
Embroidery Area (mm) |
250×400 |
---|---|
Cap Frame (mm) |
72×360 |
Number of Needles | 9 |
Stitch Length (mm) |
0.1~12.7 |
Speed (rpm) |
(Tubular Frame) 200~1200 (Cap Frame) 200~1000 |
Power Supply (V) |
1φ 100~240 |
Power Consumption (kW) |
0.225 |

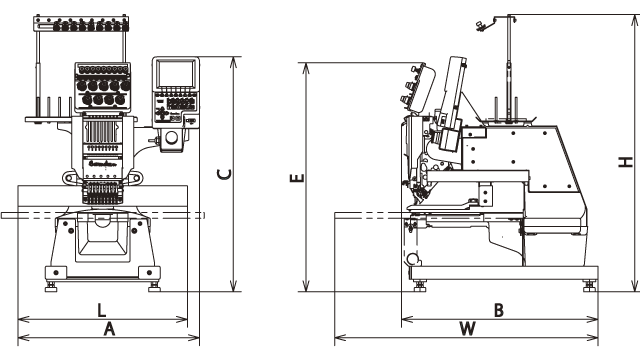

Dimensions (mm) | Weight(kg) | |
---|---|---|
L | 600 | 70 |
W | 920 | |
H | 965 | |
A | 635 | |
B | 690 | |
C | 820 | |
E | 800 |
The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Machines and Specifications are subject to change at any time without prior notice.
