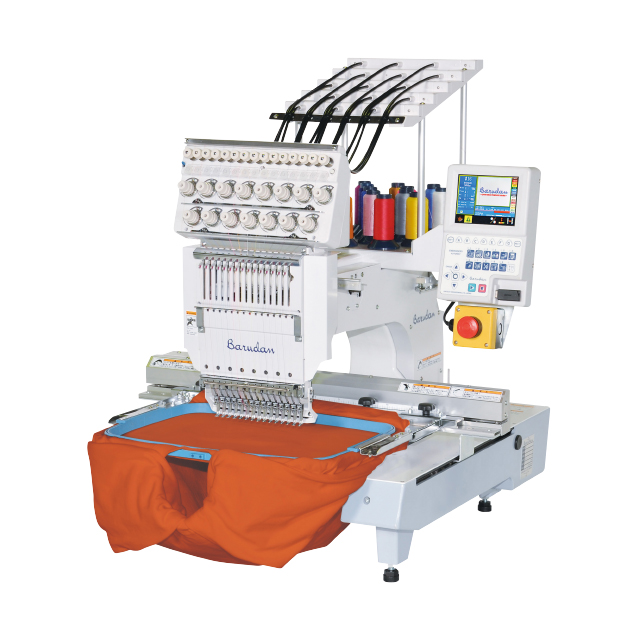

High speed multi head embroidery machine

BEXT-S1501CBⅡ

XT Color LCD 5.7 inch Automat with icon based operation menus, same operation as our XS/XY multihead machines Less noise by SmartHead technology Servo motors for increased production and more power

BEXT-S1501CBⅡ

Features

Name Drop

Separates names in a multiple name design for view and sewing purposes

Name Drop

Frame Centering Function

Frame Limit Function

Able to restrict machine operation when a design does not fit to the frame or when there is a risk of a needle bar hitting the frame.

Shortcuts - customize most-used icons to save time LAN Connector Standard, 1 COM, 2 USB ports

10 million stitch capacity, 100 memory locations.

Standard

Laser Pointer

Laser Pointer

LED

LED

USB Memory

USB Memory

Machine Specifications

Embroidery Area
(mm)
330×500
Cap Frame
(mm)
79×360
Number of Needles 15
Stitch Length
(mm)
0.1~12.7
Speed
(rpm)
(Tubular Frame)
200~1300
(Cap Frame)
200~1000
Power Supply
(V)

100~240
Power Consumption
(kW)
0.225

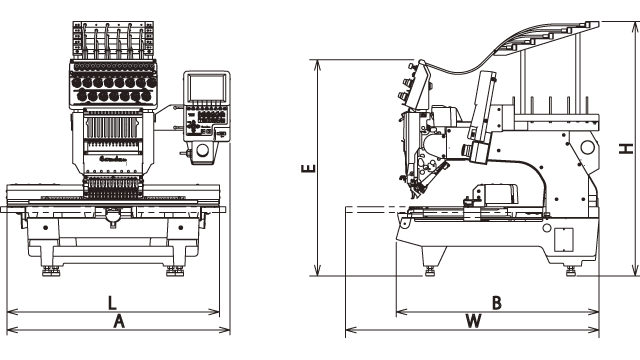

Machine Main Dimensions

Dimensions (mm) Weight(kg)
L 755 72
W 900
H 900
A 795
B 720
E 770

MODEL   BEXT-S1501CBⅡ

MODEL BEXT-S1501CBⅡ

The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Machines and Specifications are subject to change at any time without prior notice.

Option

Frames for Finished Production

Frames for Finished Production

Wide cap frame

Wide cap frame

Sock frame

Sleeve frame

Particular Stand

Particular Stand

Particular Stand

Detachable Table
