Superfine Embroideries | Barudan Best Computerised International Standard Embroidery Machines | Dedicated Sampling Machines

XT Color LCD 5.7 inch Automat with icon based operation menus, same operation as our XS/XY multihead machines Less noise by SmartHead technology Servo motors for increased production and more power

BEXT-S1501CⅡ

Features

Name Drop

Separates names in a multiple name design for view and sewing purposes

Name Drop

Frame Centering Function

Frame Limit Function

Able to restrict machine operation when a design does not fit to the frame or when there is a risk of a needle bar hitting the frame.

Shortcuts - customize most-used icons to save time LAN Connector Standard, 1 COM, 2 USB ports

10 million stitch capacity, 100 memory locations.

Standard

Laser Pointer

LED

USB Memory

Machine Specifications

Embroidery Area (mm)	450×520
Cap Frame (mm)	79×360
Number of Needles	15
Stitch Length (mm)	0.1~12.7
Speed (rpm)	(Frames for Finished goods) 200~1300 (Tubular Frame & Cap Frame) 200~1000
Power Supply (V)	1φ 100~240
Power Consumption (kW)	0.225

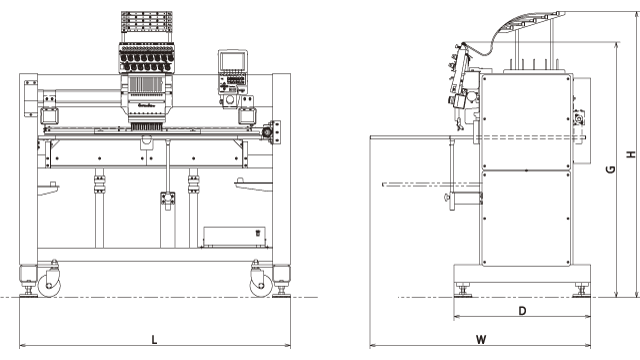

Machine Main Dimensions

Dimensions (mm)		Weight(kg)
L	1525	315
W	1245
H	1610
D	770
G	1440

BEXT-S1501CⅡ

MODEL BEXT-S1501CⅡ

The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Machines and Specifications are subject to change at any time without prior notice.

Option

Frames for Finished Production

Spider Frames

Wide cap frame

Sleeve Frame

Bag Frame
