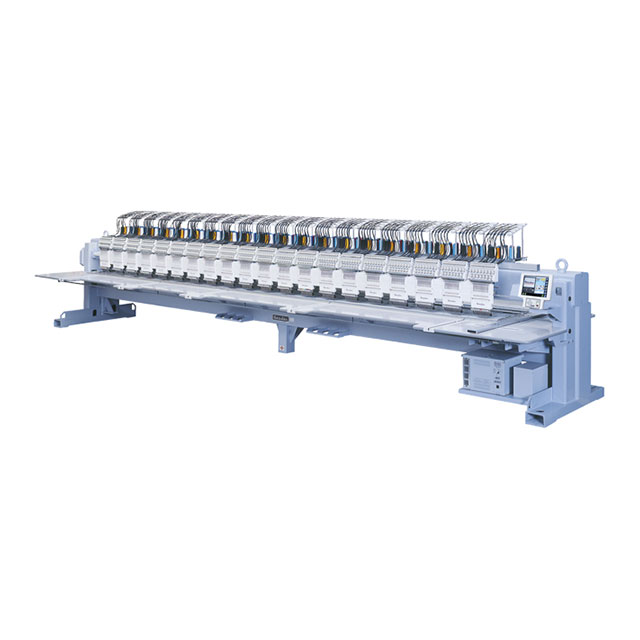

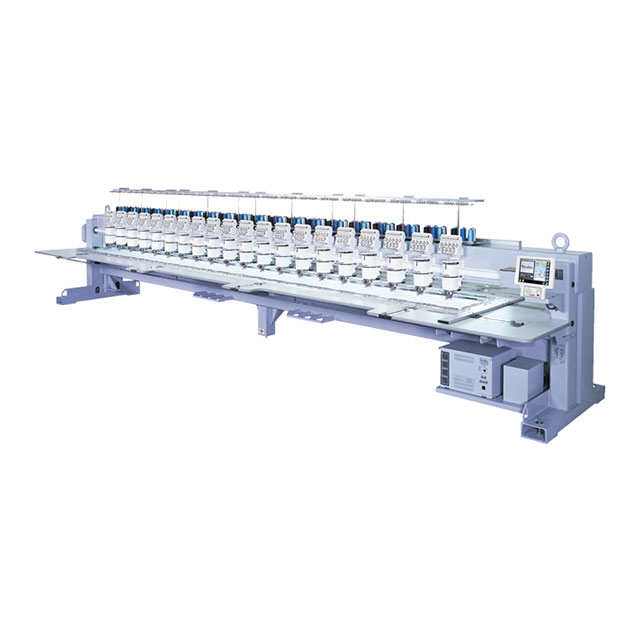

High speed multi head embroidery machine

BEKS series

Fast and Reliable, High-Speed Embroidery

MODEL BEKS-Y920C

MODEL BEKS-S1520

BEKS series

Embroidery Solutions for the Information Technology Age

We are very proud to introduce our newest Barudan high speed multi head embroidery machine with a maximum speed of 1000rpm.
Having a LAN Connection and Networking makes Production Control easier than you ever imagined.
Backed by the most advanced technology, the BEKS will change your concept of embroidery machines.

Features

Touch screen (10.4 inch, Resolution 800×600)

Ability to register shortcuts into multiple groups

Customizeable Display

Easy Icon based operation

Lan Connector Standard, 1×COM Port & 2×USB Ports, 1×Remote Controller Connector

70 million stitch capacity, 100 memory locations


Standard

KS Automat

KS Automat

USB Memory

USB Memory

Machine Specifications

BEKS-Y912
Embroidery Area
(mm)		 600
×
400 ⁄ 450		 750
×
400 ⁄ 450		 1000
×
500 ⁄ 1000
Number of Needles 9
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 0.7
BEKS-Y915
Embroidery Area
(mm)		 600×
400 ⁄ 400		 800×
400 ⁄ 500
Number of Needles 9
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 0.7
BEKS-Y918
Embroidery Area
(mm)		 800×
400 ⁄ 500		 1300×
400 ⁄ 500
Number of Needles 9
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 0.7
BEKS-Y920
Embroidery Area
(mm)		 600
×
300 ⁄ 600		 750
×
300 ⁄ 500		 1000
×
300 ⁄ 600
Number of Needles 9
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 1.0
BEKS-Y924
Embroidery Area
(mm)		 1300×330 ⁄ 660
Number of Needles 9
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 3φ
200~415
Power Consumption
(kW)		 1.0
BEKS-Y928
Embroidery Area
(mm)		 1500×330 ⁄ 660
Number of Needles 9
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 3φ
200~415
Power Consumption
(kW)		 1.9
BEKS-Y930
Embroidery Area
(mm)		 1500×243 ⁄ 486
Number of Needles 9
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 3φ
200~415
Power Consumption
(kW)		 1.9
BEKS-S918
Embroidery Area
(mm)		 1000×
400 ⁄ 500		 1300×
400 ⁄ 500
Number of Needles 9
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 0.7
BEKS-S922
Embroidery Area
(mm)		 1200×330 ⁄ 660
Number of Needles 9
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 3φ
200~415
Power Consumption
(kW)		 1.0
BEKS-S928
Embroidery Area
(mm)		 1500×330 ⁄ 660
Number of Needles 9
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 3φ
200~415
Power Consumption
(kW)		 1.9
BEKS-S1212
Embroidery Area
(mm)		 600×400 ⁄ 450
Number of Needles 12
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 0.7
BEKS-S1215
Embroidery Area
(mm)		 800×400 ⁄ 500
Number of Needles 12
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 0.7
BEKS-S1218
Embroidery Area
(mm)		 800×400 ⁄ 500
Number of Needles 12
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 0.7
BEKS-S1512
Embroidery Area
(mm)		 600×400 ⁄ 450
Number of Needles 15
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 0.7
BEKS-S1515
Embroidery Area
(mm)		 800×400 ⁄ 500
Number of Needles 15
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 0.7
BEKS-S1518
Embroidery Area
(mm)		 800×400 ⁄ 500
Number of Needles 15
Stitch Length
(mm)		 0.1~12.7
Speed
(rpm)		 200~1000
Power Supply
(V)		 1φ
200~240
3φ
200~415
Power Consumption
(kW)		 0.7

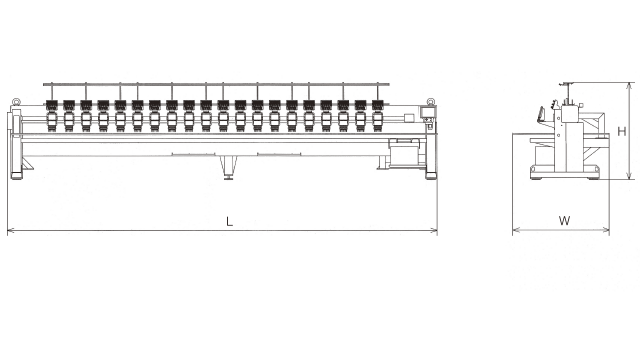

Machine Main Dimensions

BEKS-Y912
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
400 600×
4800		 L 6275
W 1700
H 1670
750×
4800		 L 6275
W 2000
H 1670
500 1000
×
6000		 L 8475
W 2500
H 1670
BEKS-Y915
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
400 600×
6000		 L 7375
W 1700
H 1670
800×
6000		 L 7575
W 2100
H 1670
BEKS-Y918
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
400 800×
7200		 L 8775
W 2100
H 1670
1300
×
7200		 L 8825
W 3100
H 1670
BEKS-Y920
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
300 600×
6000		 L 7875
W 1700
H 1670
750×
6000		 L 7675
W 2000
H 1670
1000
×
6000		 L 7925
W 2500
H 1670
BEKS-Y924
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
330 1300
×
7920		 L 9935
W 3170
H 1670
BEKS-Y928
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
330 1500
×
9570		 L 11550
W 3570
H 1770
BEKS-Y930
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
243 1500
×
7290		 L 9110
W 3570
H 1670
BEKS-S918
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
400 1000
×
7200		 L 8825
W 2500
H 1670
1300
×
7200		 L 8825
W 3100
H 1670
BEKS-S922
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
330 1200
×
7260		 L 9275
W 2900
H 1670
BEKS-S928
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
330 1500
×
9240		 L 11255
W 3500
H 1770
BEKS-S1212
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
400 600×
4800		 L 6275
W 1700
H 1670
BEKS-S1215
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
400 800×
6000		 L 7575
W 2100
H 1670
BEKS-S1218
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
400 800×
7200		 L 8775
W 2100
H 1670
BEKS-S1512
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
400 600×
4800		 L 6275
W 1700
H 1670
BEKS-S1515
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
400 800×
6000		 L 7575
W 2100
H 1670
BEKS-S1518
Needle Distance
(mm)		 Continuous Design
(mm)		 Dimensions
(mm)
400 800×
6000		 L 8775
W 2100
H 1670

MODEL BEKS-Y920

MODEL BEKS-Y920

The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Other embroidery areas are available upon consultation.
Machines and specifications are subject to change at any time without prior notice.
