High speed multi head embroidery machine

BEKS-H series

High productivity with max. speed 1200rpm. High efficiency with newly developed jump mechanism.

Embroidery Solutions for the Information Technology Age

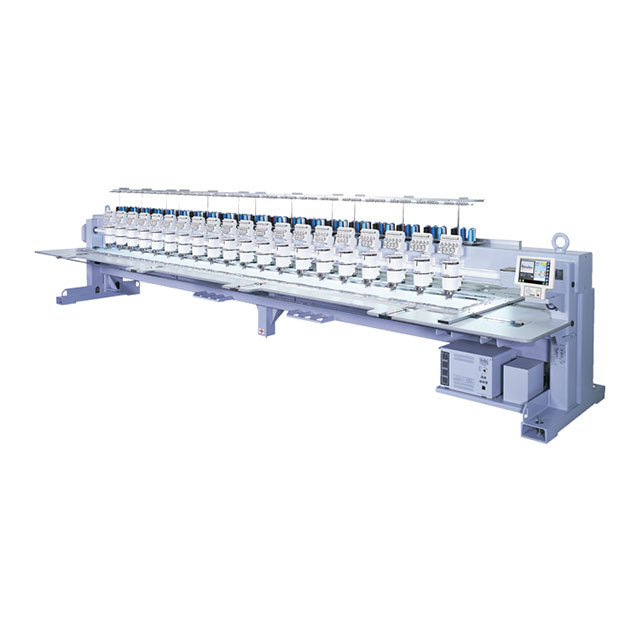

MODEL BEKS-Y920H

We are very proud to introduce our newest Barudan high speed multi head embroidery machine with a maximum speed of 1200rpm.
Having a LAN Connection and Networking makes Production Control easier than you ever imagined.
Backed by the most advanced technology, the BEKS-H will change your concept of embroidery machines.

Features

Touch screen (10.4 inch, Resolution 800×600)

Ability to register shortcuts into multiple groups

Customizeable Display

Easy Icon based operation

Lan Connector Standard, 1×COM Port & 2×USB Ports, 1×Remote Controller Connector

70 million stitch capacity, 100 memory locations

Standard

KS Automat

KS Automat

USB Memory

USB Memory

Machine Specifications

BEKS-Y915H
Embroidery Area
(mm)
800×400 ⁄ 500
Number of Needles 9
Stitch Length
(mm)
0.1~12.7
Speed
(rpm)
200~1200
Power Supply
(V)

200~240

200~415
Power Consumption
(kW)
1.9
BEKS-Y918H
Embroidery Area
(mm)
800×400 ⁄ 500
Number of Needles 9
Stitch Length
(mm)
0.1~12.7
Speed
(rpm)
200~1200
Power Supply
(V)

200~240

200~415
Power Consumption
(kW)
1.9
BEKS-Y920H
Embroidery Area
(mm)
600×300 ⁄ 600
Number of Needles 9
Stitch Length
(mm)
0.1~12.7
Speed
(rpm)
200~1200
Power Supply
(V)

200~240

200~415
Power Consumption
(kW)
1.9

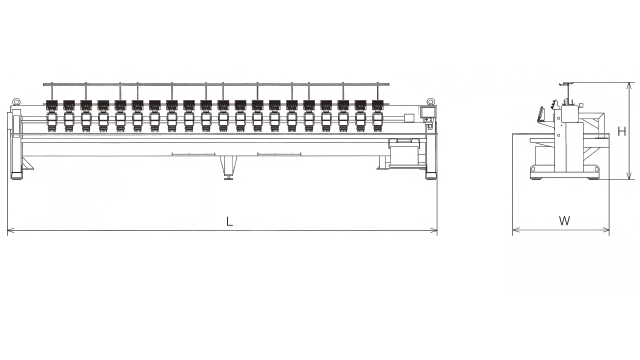

Machine Main Dimensions

BEKS-Y915H
Needle Distance
(mm)
Continuous Design
(mm)
Dimensions
(mm)
400 800×6000 L 7575
W 2100
H 1670
BEKS-Y918H
Needle Distance
(mm)
Continuous Design
(mm)
Dimensions
(mm)
400 800×7300 L 8775
W 2100
H 1670
BEKS-Y920H
Needle Distance
(mm)
Continuous Design
(mm)
Dimensions
(mm)
300 600×6000 L 7945
W 1700
H 1670

MODEL   BEKS-Y920H

MODEL BEKS-Y920H

The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Other embroidery areas are available upon consultation.
Machines and specifications are subject to change at any time without prior notice.
