Touch screen (10.4 inch, Resolution 800×600)
Ability to register shortcuts into multiple groups
Customizeable Display
Easy Icon based operation
Lan Connector Standard, 1×COM Port & 2×USB Ports, 1×Remote Controller Connector
70 million stitch capacity, 100 memory locations
New Type Shaftless Cap Frames (Option)
Embroidery Area (mm) |
450× | 380 ⁄ 380450× | 450 ⁄ 450450× | 520 ⁄ 520
---|---|---|---|
Number of Needles | 15 | ||
Stitch Length (mm) |
0.1~12.7 | ||
Speed (rpm) |
(Cap Frame)
200~1000 (Tubular Frame) 200~1000 |
||
Power Supply (V) |
1φ 200~240 3φ 200~415 |
||
Power Consumption (kW) |
0.7 |
Embroidery Area (mm) |
450×380 ⁄ 380 |
---|---|
Number of Needles | 15 |
Stitch Length (mm) |
0.1~12.7 |
Speed (rpm) |
(Cap Frame)
200~1000 (Tubular Frame) 200~1000 |
Power Supply (V) |
1φ 200~240 3φ 200~415 |
Power Consumption (kW) |
0.7 |
Embroidery Area (mm) |
450×380 ⁄ 380 |
---|---|
Number of Needles | 15 |
Stitch Length (mm) |
0.1~12.7 |
Speed (rpm) |
(Cap Frame)
200~1000 (Tubular Frame) 200~1000 |
Power Supply (V) |
1φ 200~240 3φ 200~415 |
Power Consumption (kW) |
0.7 |
Needle Distance (mm) |
Continuous Design (mm) |

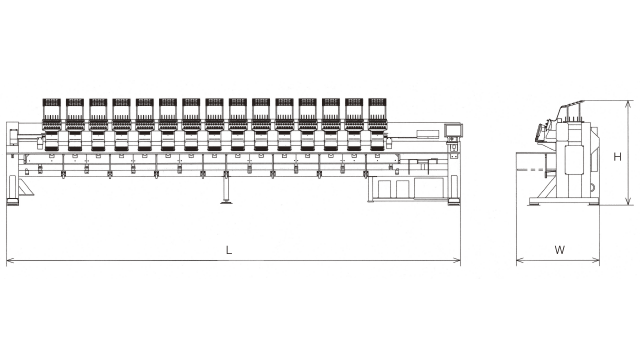

Dimensions (mm) |
|
---|---|---|---|
380 | 450× 4560 | L | 6280 |
W | 1360 | ||
H | 1700 | ||
450 | 450× 5400 | L | 7260 |
W | 1360 | ||
H | 1700 | ||
520 | 450× 6240 | L | 8240 |
W | 1360 | ||
H | 1700 |
Needle Distance (mm) |
Continuous Design (mm) |
Dimensions (mm) |
|
---|---|---|---|
380 | 450×5700 | L | 7420 |
W | 1360 | ||
H | 1700 |
Needle Distance (mm) |
Continuous Design (mm) |
Dimensions (mm) |
|
---|---|---|---|
380 | 450×6840 | L | 8560 |
W | 1360 | ||
H | 1700 |
The embroidery area indicated above allows for maximum pantograph movement.
The frame used may restrict the actual embroidery field size.
Other embroidery areas are available upon consultation.
Machines and specifications are subject to change at any time without prior notice.
